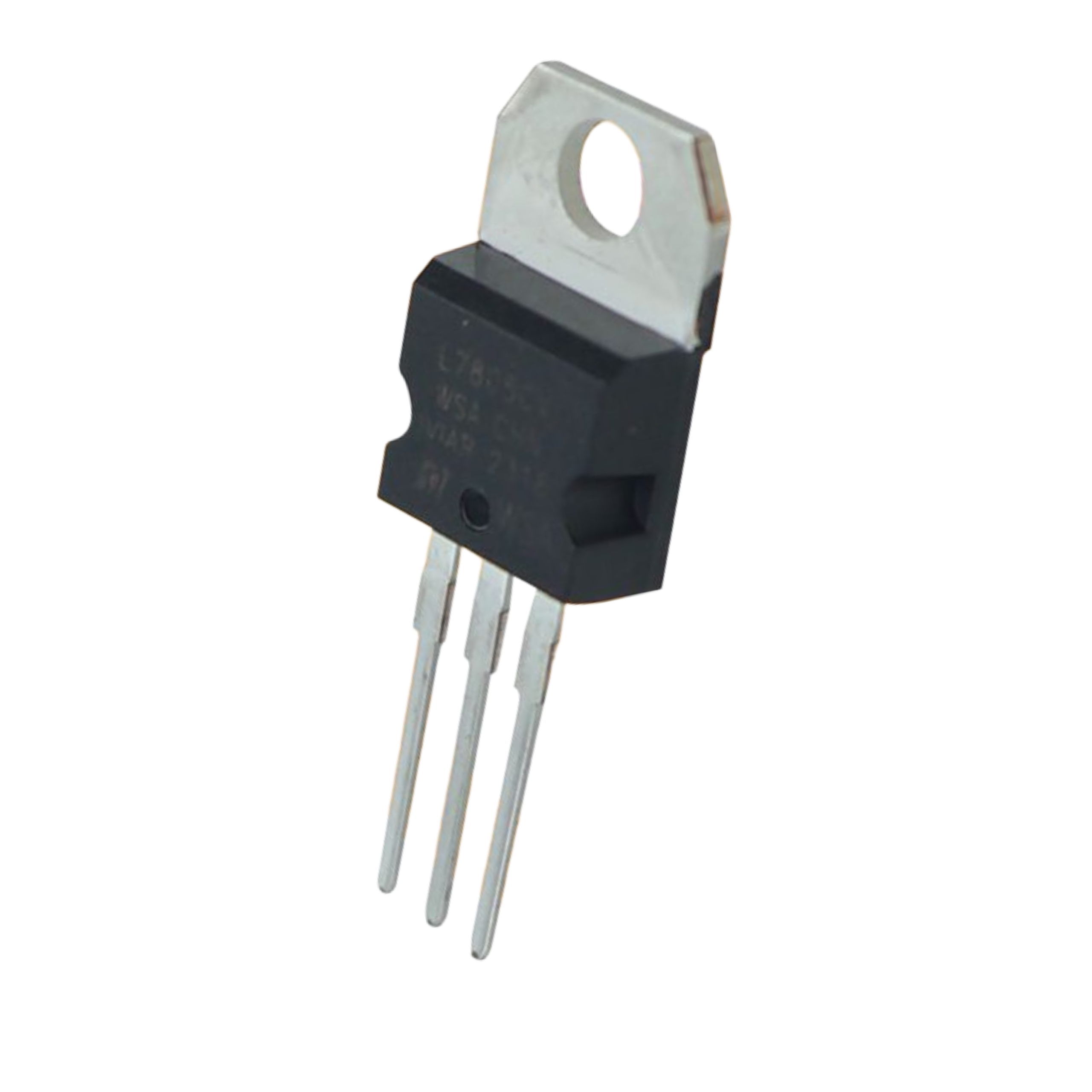

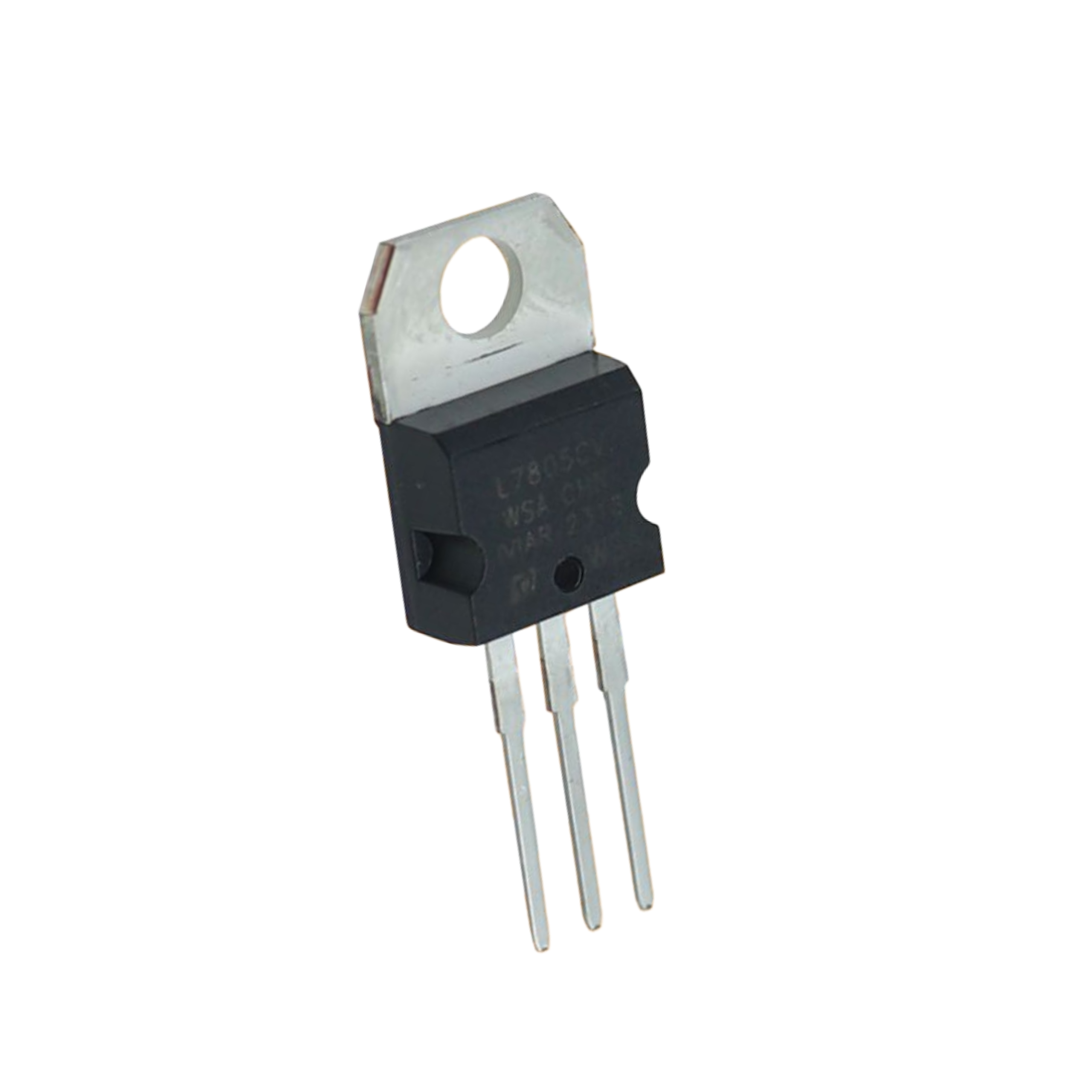

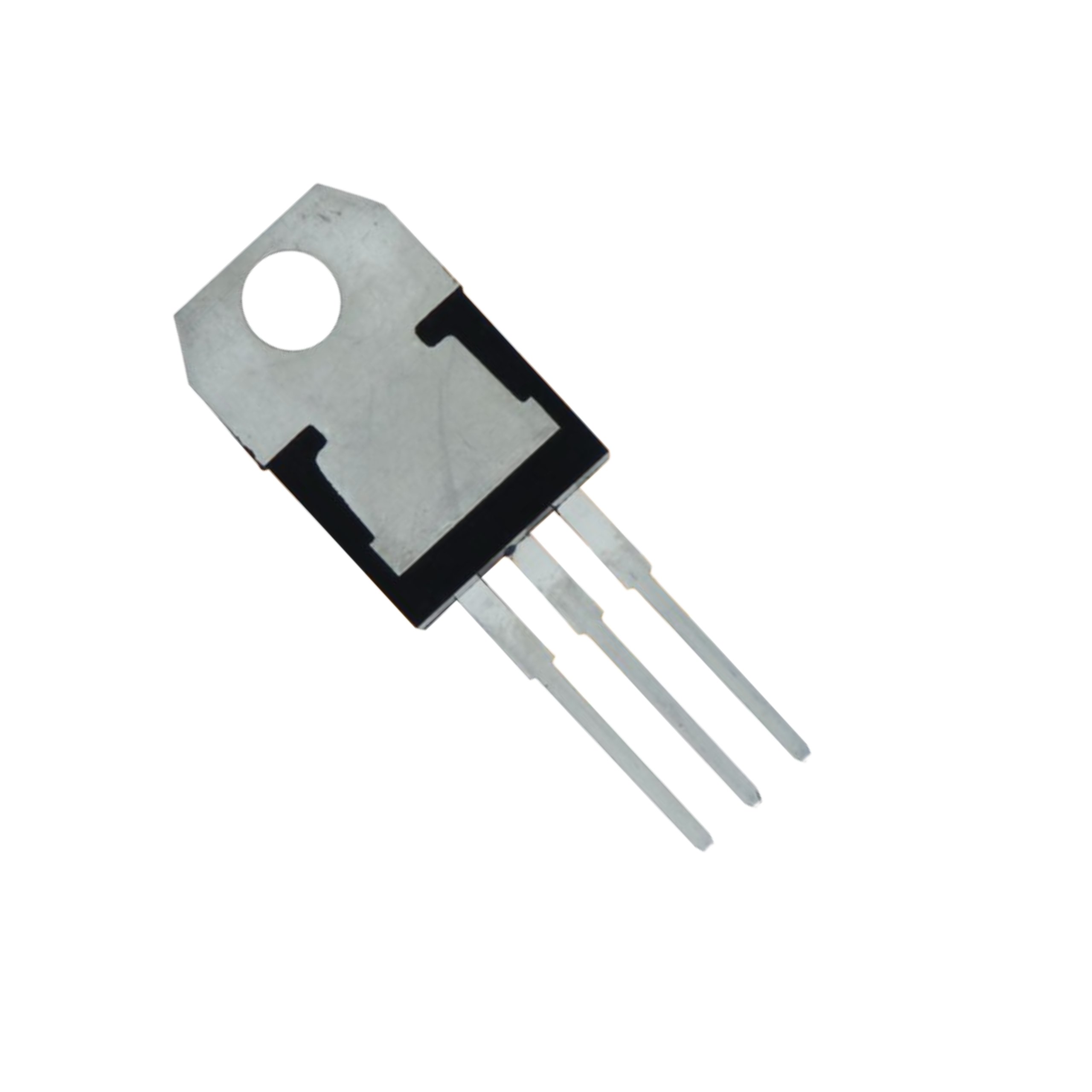

7805 IC – 5V Linear Voltage Regulator (TO-220) | Pack of 2
Standard 7805 voltage regulator IC providing a fixed 5V DC output, ideal for Arduino power supplies, DIY electronics, and embedded projects.
- Ultra-fast delivery in minutes.Order any day of the week and get your items delivered quickly.
- All prices include shipping fulfilled by Elitronyx.
- Prefer pickup? Collect your order from a nearby Elitronyx pickup point (where available).
- Need help? Our customer support is available from 9 am to 9 pm.
- Day and night customer service
Description
The 7805 IC – 5V Linear Voltage Regulator (TO-220) in a pack of 2 is a reliable and widely used solution for generating a stable 5V DC output from higher input voltages. These ICs are commonly used in Arduino power circuits, embedded systems, DIY electronics, and educational projects.
Each IC features built-in thermal shutdown, short-circuit protection, and current limiting, ensuring safe and consistent operation. The TO-220 package allows easy mounting and efficient heat dissipation when used with a heatsink.
| Parameter | Value |
|---|---|
| IC Type | Linear Voltage Regulator |
| Model | 7805 |
| Output Voltage | 5V DC |
| Input Voltage | 7V – 35V |
| Output Current | Up to 1A |
| Package | TO-220 |
| Regulation Type | Fixed |
| Protection | Thermal, Over-current, Short-Circuit |
| Mounting | Through Hole |
Additional information
| Weight | 4 g |
|---|---|
| Dimensions | 10 × 4.5 × 15 mm |
