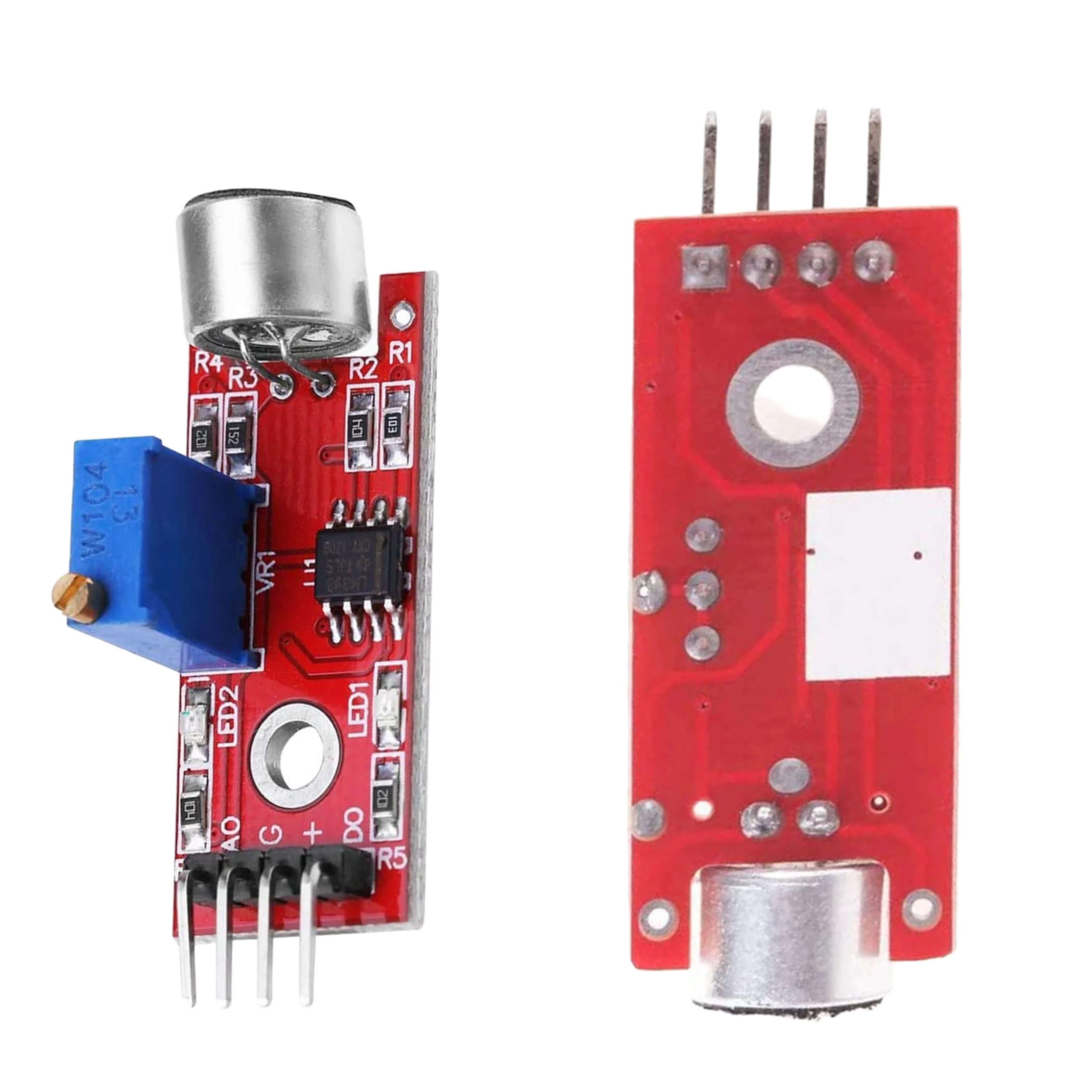

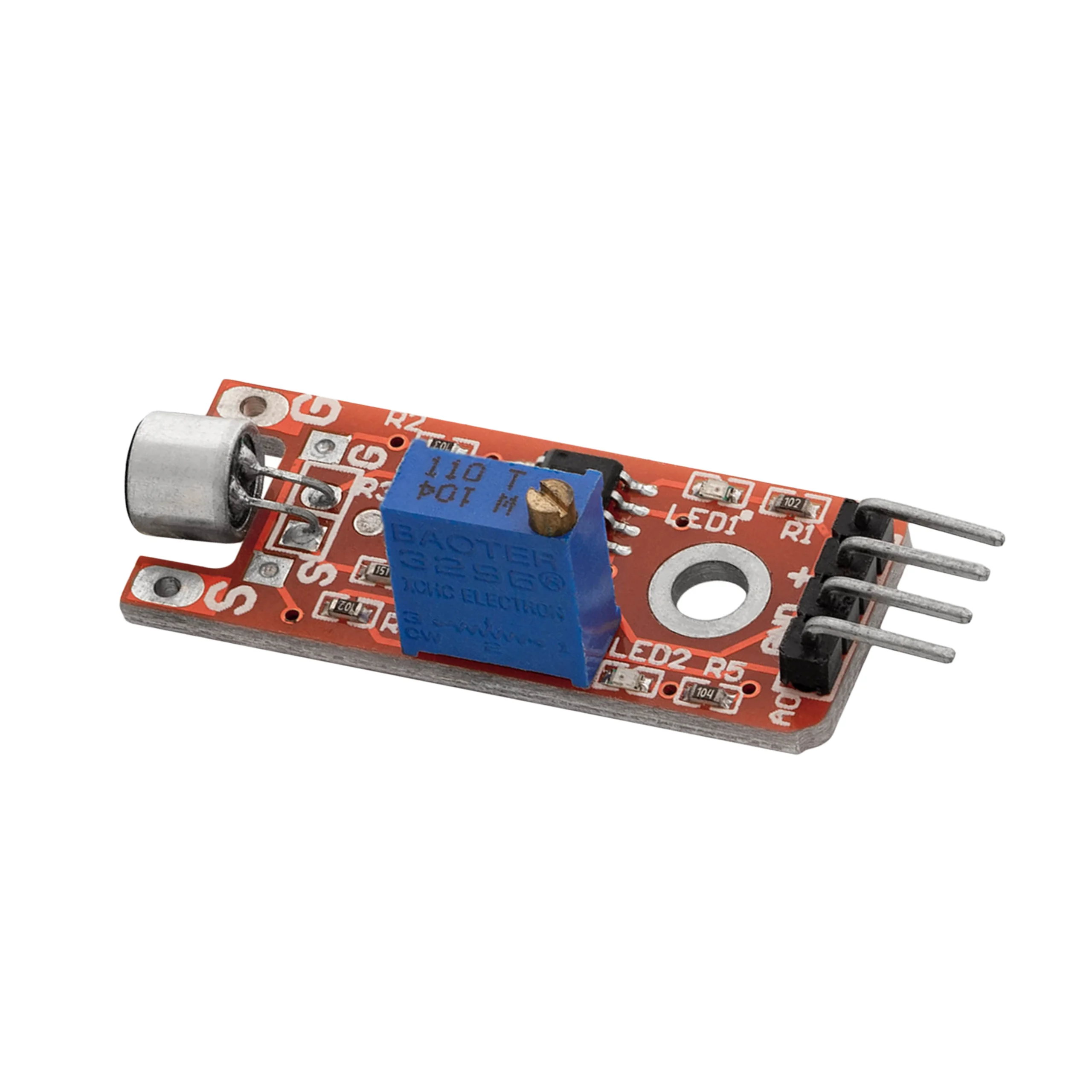

Microphone Sound Sensor Module (Sound Detection Sensor)
Microphone Sound Sensor Module (Sound Detection Sensor) - Image 2
Microphone Sound Sensor Module (Sound Detection Sensor) - Image 3
Microphone Sound Sensor Module (Sound Detection Sensor) - Image 4

Microphone Sound Sensor Module (Sound Detection Sensor)

₹86.00 Original price was: ₹86.00.₹69.00Current price is: ₹69.00.
In Stock

High-sensitivity microphone sound sensor module for detecting sound levels, ideal for Arduino, ESP, and DIY electronics projects.

In Stock
Add to wishlist
  • Ultra-fast delivery in minutes.Order any day of the week and get your items delivered quickly.
  • All prices include shipping fulfilled by Elitronyx.
  • Prefer pickup? Collect your order from a nearby Elitronyx pickup point (where available).
  • Need help? Our customer support is available from 9 am to 9 pm.
  • Day and night customer service
SKU: SEN-SOUND-MIC
Category:
Tags: , , , ,

Description

The Microphone Sound Sensor Module is designed to detect sound intensity and noise levels using an onboard microphone and amplifier circuit. It provides both analog and digital outputs, allowing flexible use in various applications such as sound-activated switches, clapping control systems, alarms, and IoT projects.

This module is easy to interface with Arduino, ESP8266, ESP32, and Raspberry Pi. An onboard potentiometer allows sensitivity adjustment to fine-tune detection levels for different environments.

Parameter Value
Sensor Type Microphone Sound Sensor
Operating Voltage 3.3V – 5V
Output Type Analog & Digital
Detection Method Sound intensity
Sensitivity Control Adjustable
Indicator Power & Status LED
Interface Pins VCC, GND, AO, DO
PCB Color Blue (may vary)

Additional information

Weight 5 g
Dimensions 32 × 17 × 8 mm
