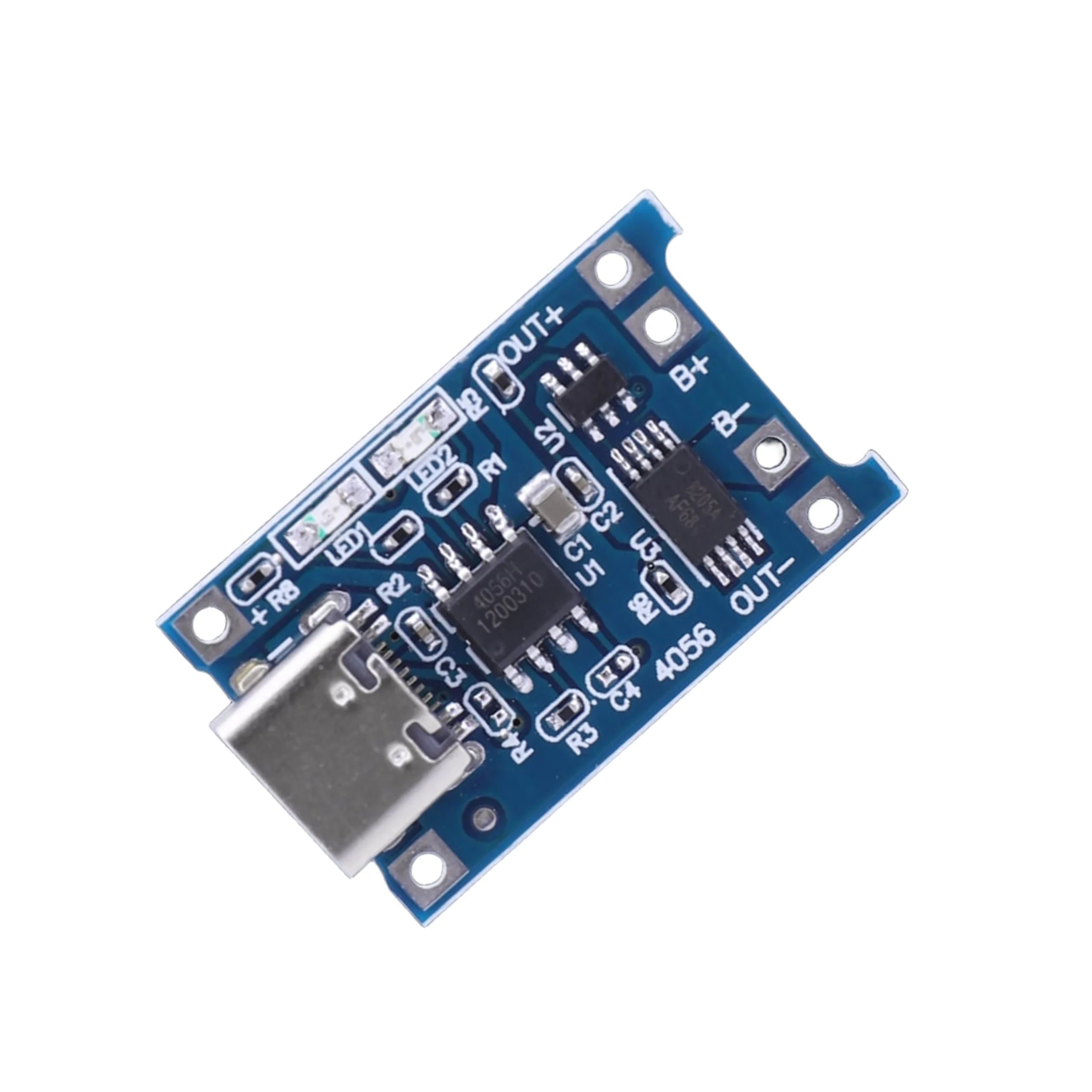

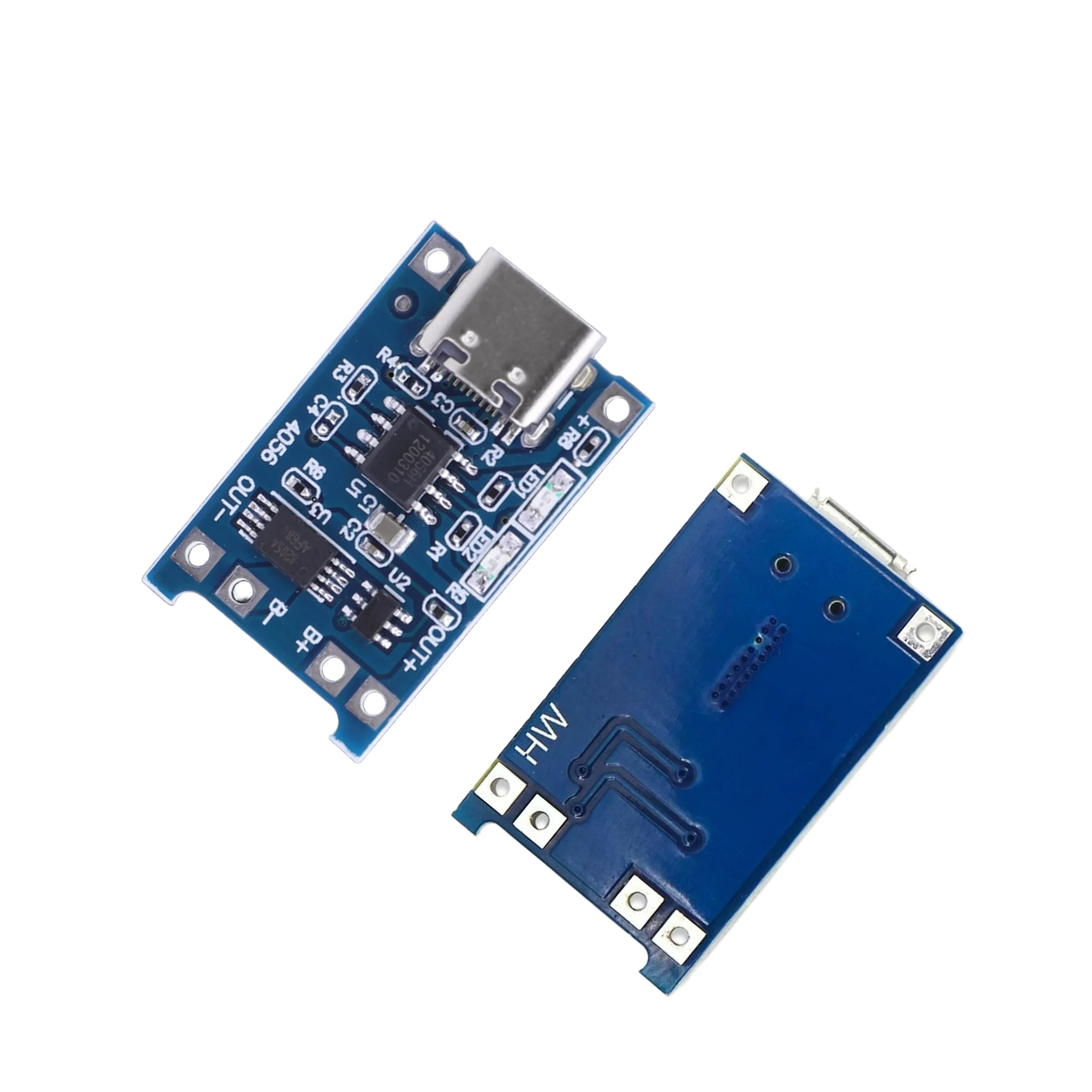

TP4056 5V 1A 18650 Lithium Battery Charging module (C-TYPE)
Compact TP4056 Type-C lithium battery charger module for safely charging 3.7V 18650 Li-ion/Li-Po batteries with up to 1A charging current.
- Ultra-fast delivery in minutes.Order any day of the week and get your items delivered quickly.
- All prices include shipping fulfilled by Elitronyx.
- Prefer pickup? Collect your order from a nearby Elitronyx pickup point (where available).
- Need help? Our customer support is available from 9 am to 9 pm.
- Day and night customer service
Description
The TP4056 5V 1A 18650 Lithium Battery Charging Module (Type-C) is a reliable and efficient charger designed for single-cell 3.7V Li-ion/Li-Po batteries. Powered via a modern USB Type-C input, it provides stable charging with built-in safety features.
This module supports constant current / constant voltage (CC/CV) charging and includes status indicator LEDs to show charging and full-charge states. It is widely used in power banks, DIY electronics, IoT devices, Arduino projects, and battery-powered gadgets.
| Parameter | Value |
|---|---|
| Charger IC | TP4056 |
| Input Voltage | 5V DC |
| Input Port | USB Type-C |
| Battery Type | 3.7V Li-ion / Li-Po |
| Charging Current | Up to 1A |
| Charging Method | CC / CV |
| Termination Voltage | 4.2V ±1% |
| Indicator LEDs | Charging / Done |
| Protection | Optional (variant dependent) |
Additional information
| Weight | 4 g |
|---|---|
| Dimensions | 25 × 18 × 6 mm |
