Low-cost 315MHz RF transmitter & receiver module set (5V) for Arduino, ESP, and DIY wireless control projects.
Products are almost sold out
the available products : 5
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by blonwe.com
- Pick up at a blonwe.com collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description

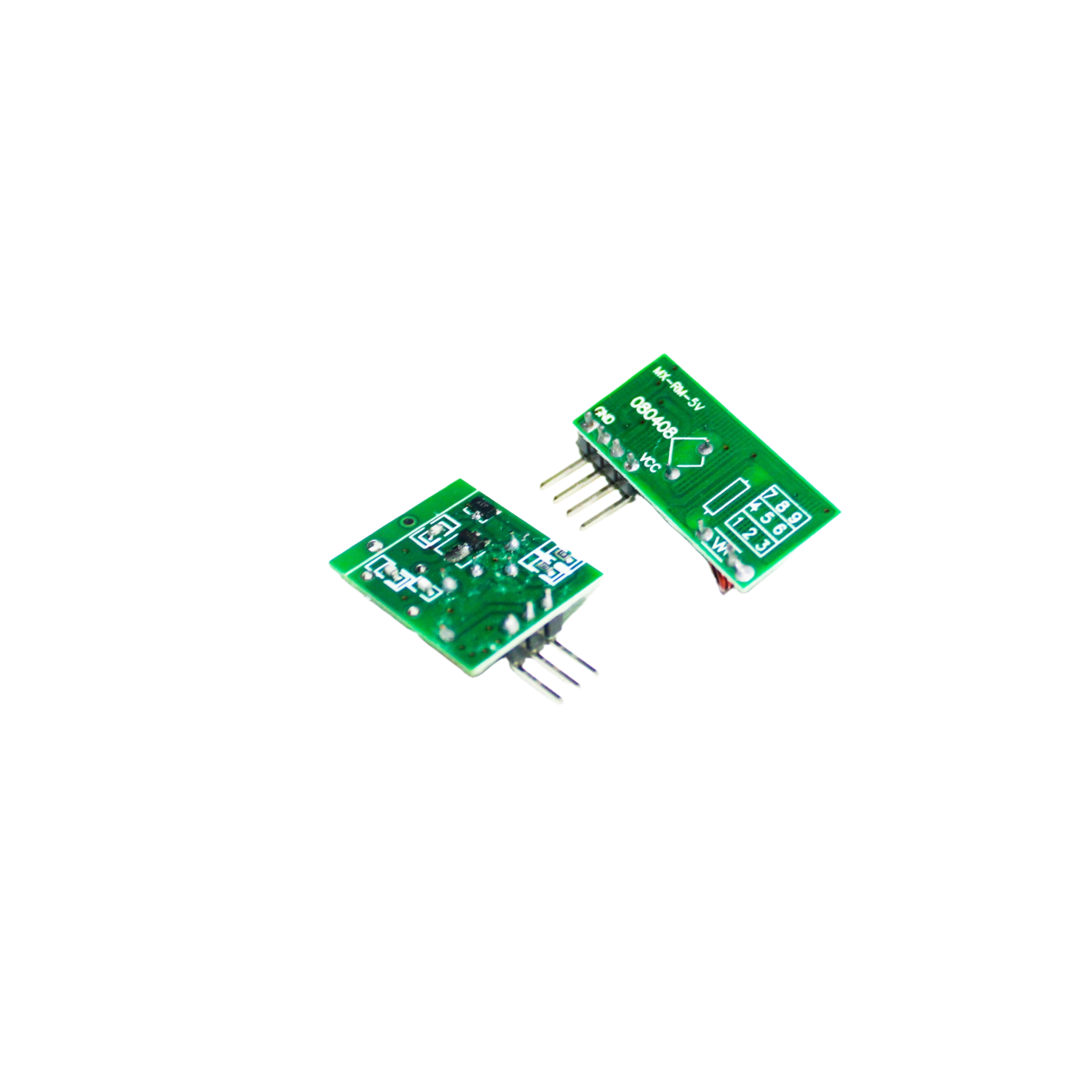

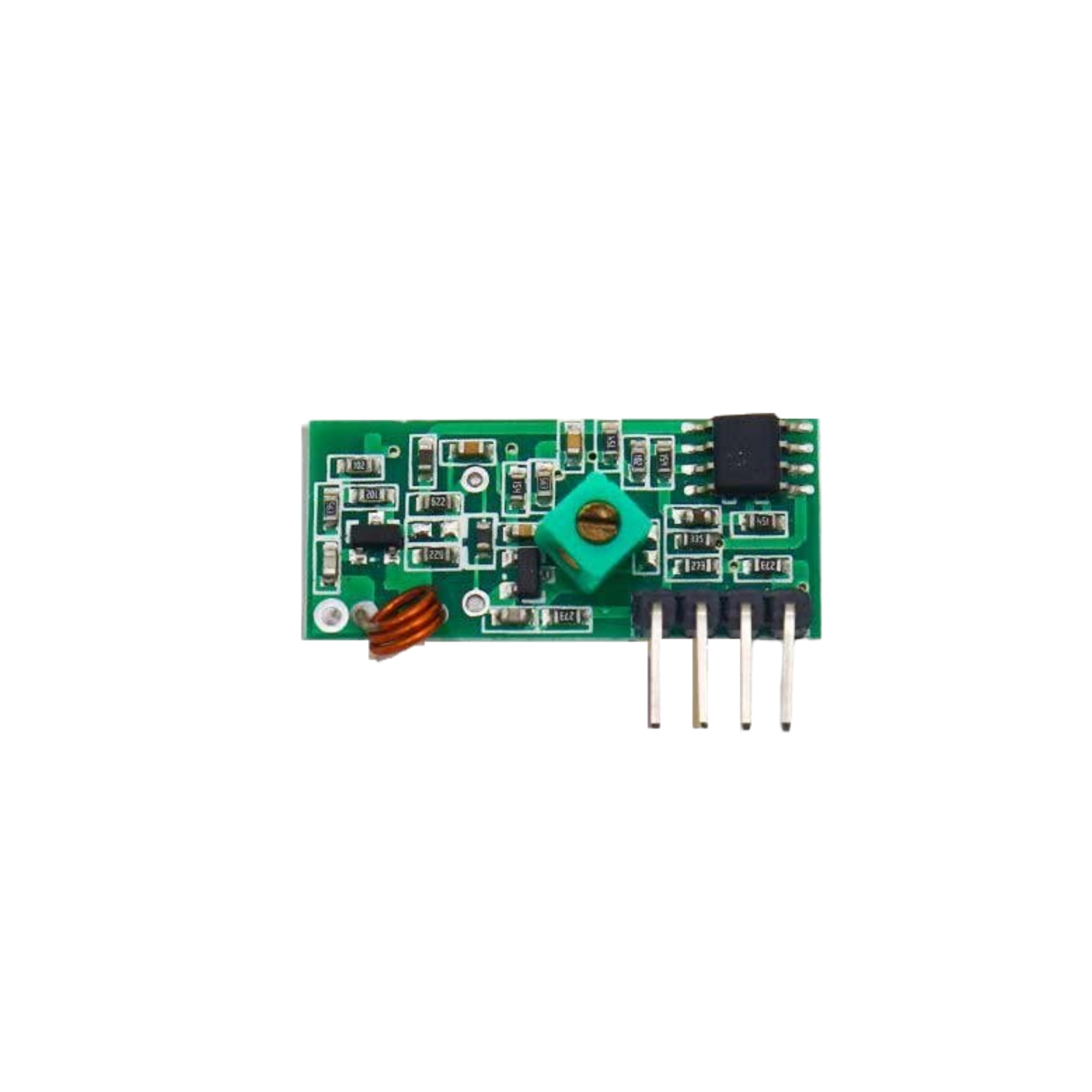

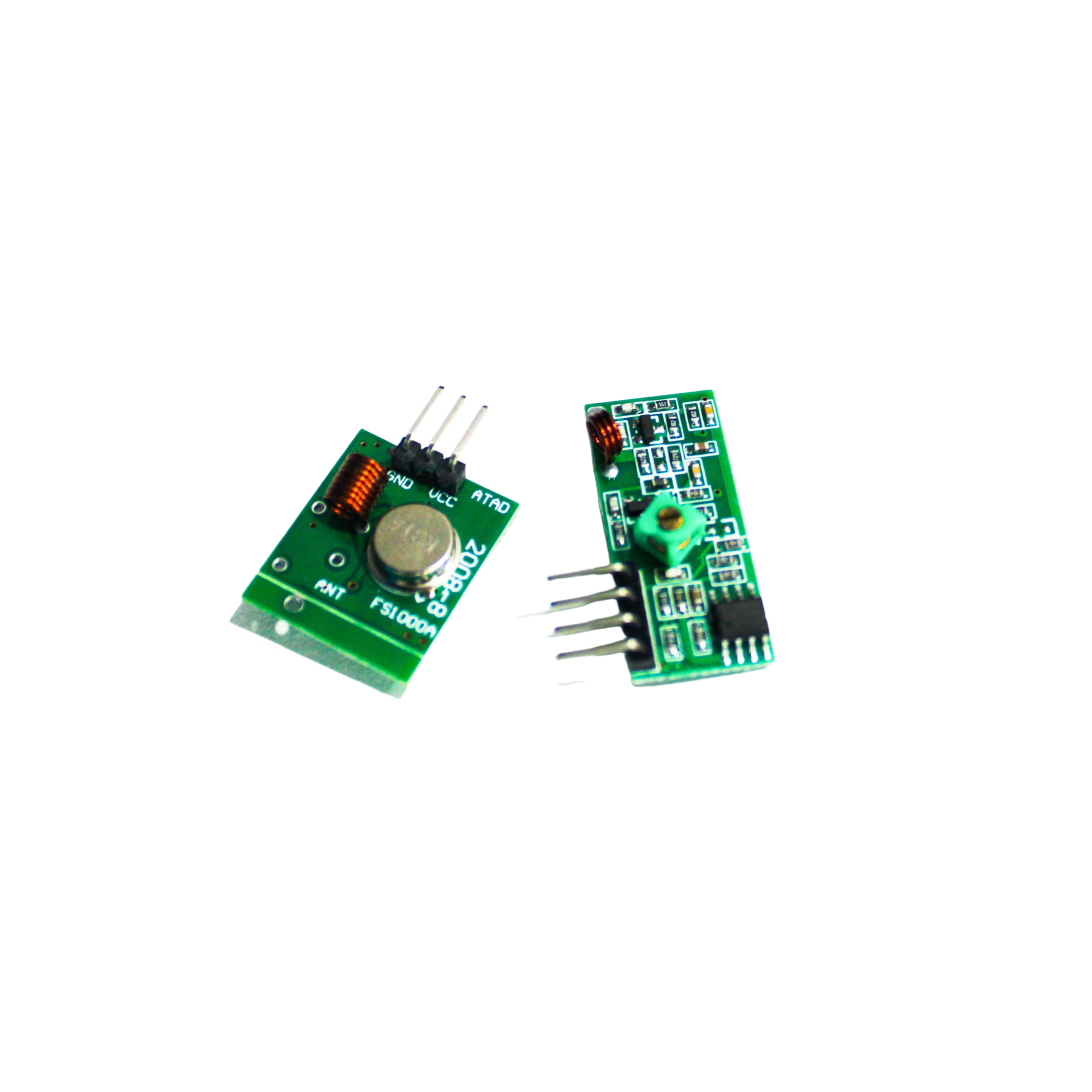

The 315MHz XD-FST XD-RF-5V Wireless Transmitter Receiver Module is a simple and reliable RF solution for short-range wireless data communication. Operating at 315MHz, this module pair is ideal for remote controls, wireless switches, sensor data transmission, and home automation projects.
The transmitter (XD-FST) sends data using ASK/OOK modulation, while the receiver (XD-RF-5V) provides stable reception at 5V. It integrates easily with Arduino, ESP8266/ESP32 (via level matching), and other microcontrollers, and works well with common encoder/decoder ICs like HT12E/HT12D.
| Parameter | Value |
|---|---|
| Frequency | 315 MHz |
| Transmitter Model | XD-FST |
| Receiver Model | XD-RF-5V |
| Modulation | ASK / OOK |
| Receiver Voltage | 5V DC |
| Transmitter Voltage | 3V–12V DC |
| Data Rate | Up to ~4 kbps |
| Range | ~50–100 m (open area) |
| Antenna | External wire (recommended) |
Additional information
| Weight | 5 g |
|---|---|
| Dimensions | 190 × 300 × 14 mm |
